產品參數

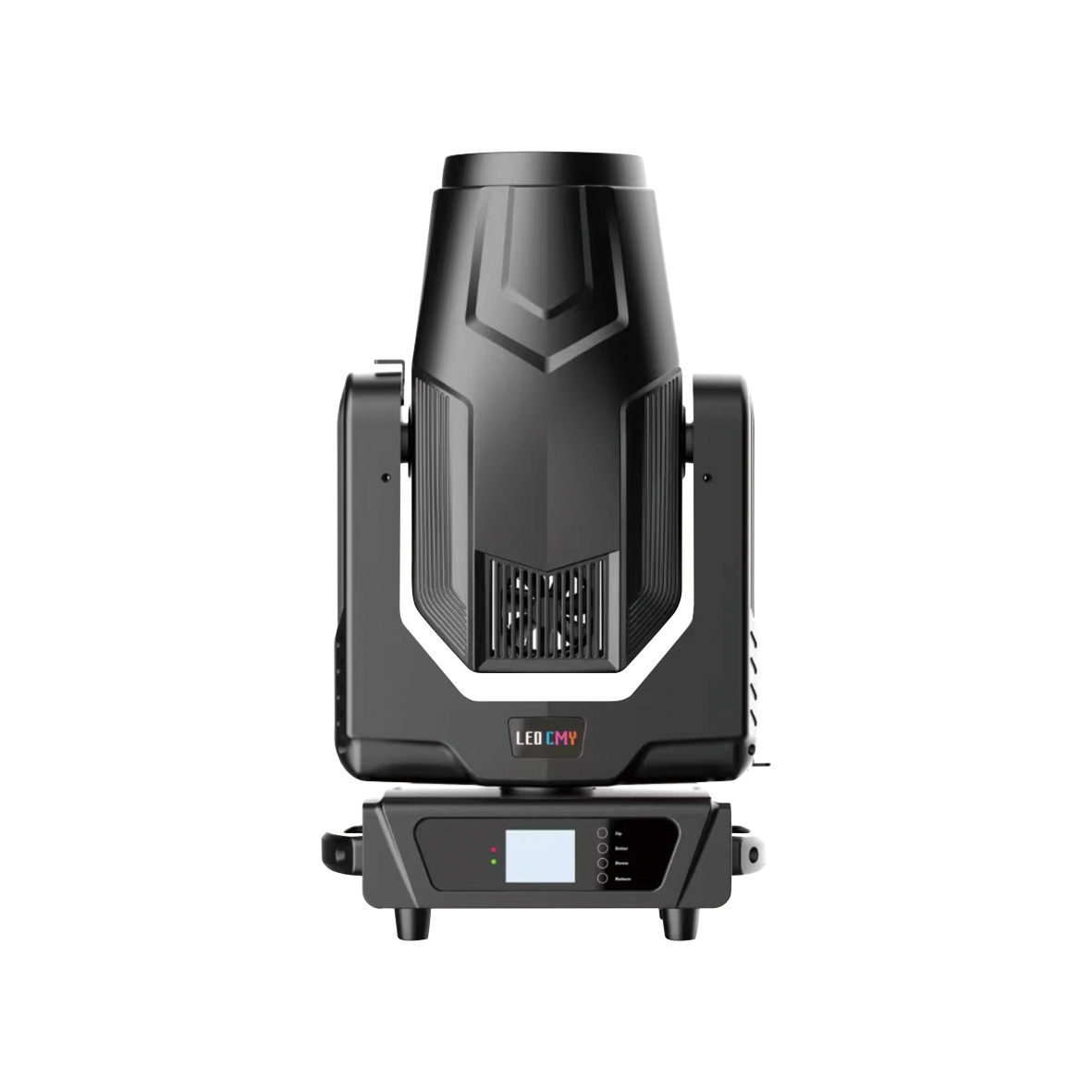

500W LED3in1模組搖頭燈
XL-LED500S
輸入電壓：AC90V-270V/50-60HZ
色溫：9000K 顯色指數：75
光源規格： ECO350－80－R00－000
光源壽命：20000小時
流明照度：4米120000 lm
出光口徑：138MM
額定功率：600W
通道模式：22通道
水平掃描：540度（16bit精度掃描）電子糾錯
垂直掃描：270度（16bit精度掃描）電子糾錯
調光系統：0-100%線性調節
調焦系統：線性調節4米至50米
霧化系統：1個獨立的霧化效果，光斑柔和自然
縮放角度：光束為2.7～36° 染色4-36° 圖案4-36°
高速頻閃：0-30次/秒.可調速頻閃效果.頻閃宏功能
顏色：8種顏色+白光.色彩半色功能
顏色系統：獨立的CMY+CTO混色系統。
固定圖案：12個固定圖案+白光
旋轉圖案：7個玻璃圖案，每個玻璃圖案可獨立正反轉
棱鏡系統：標配單6排棱鏡和8+8棱鏡，每個棱鏡可獨立正反轉
宏 功 能：控臺復位功能,自走模式，主從模式
顯示方式：液晶顯示，按鍵+觸摸雙操作模式
控制信號：國際標準DMX512。帶RDM功能，可在線軟件升級，撥地址碼
冷卻方式：采用軸向風扇加強冷卻
安全裝置：帶電子溫控過熱保護,過熱系統故障時電子溫控自動斷電保護
外觀材質：耐高溫塑膠
工作環境：-20度，40度
防護等級：IP20
產品凈重：22.5KG
產品毛重：25KG
產品尺寸：38*27*65CM (L*W*H)
紙包尺寸：54*45*61CM
Input voltage: AC90V-270V/50-60HZ
Color temperature: 9000K Color rendering index: 75
Light source specification: ECO350-80-R00-000
Light source lifespan: 20000 hours
Luminous illumination: 4 meters 120000 lm
Output aperture: 138MM
Rated power: 600W
Channel mode: 22 channels
Horizontal scanning: 540 degrees (16bit precision scanning) electronic error correction
Vertical scanning: 270 degrees (16bit precision scanning) electronic error correction
Dimming system: 0-100% linear adjustment
Focusing system: Linear adjustment from 4 meters to 50 meters
Atomization system: 1 independent atomization effect, soft and natural light spot
Scaling angle: The beam is dyed at 2.7-36 °, with a pattern of 4-36 °
High speed strobe: 0-30 times/second. Adjustable strobe effect. Strobe macro function
Color: 8 colors+white light. Color half color function
Color system: Independent CMY+CTO color mixing system.
Fixed pattern: 12 fixed patterns+white light
Rotating pattern: 7 glass patterns, each with independent forward and reverse rotation
Prism system: standard with single 6-row prisms and 8+8 prisms, each prism can independently reverse and forward
Macro function: console reset function, self running mode, master-slave mode
Display mode: LCD display, button+touch dual operation mode
Control signal: International standard DMX512. With RDM function, can upgrade online software, dial address code
Cooling method: using axial fans to enhance cooling
Safety device: equipped with electronic temperature control overheat protection, and the electronic temperature control automatically cuts off power protection in case of overheating system failure
Appearance Material: High temperature resistant plastic
Working environment: -20 degrees, 40 degrees
Protection level: Ip20
Net weight of product: 22.5KG
Product gross weight: 25KG
Product size: 38 * 27 * 65CM (L * W * H)
Paper package size: 54 * 45 * 61CM
